37 kW two-stage screw compressor for larger industrial air demand.
The 37 kW range is aimed at production plants, mines, processing facilities, factories and large workshops where compressed air is critical to daily output. CRS can quote a VSD two-stage option for variable demand, and fixed-speed two-stage alternatives where the site has consistent full-load demand.
For the two-stage range, CRS can position horizontal two-stage units for selected mid-range applications and vertical two-stage VSD / fixed-speed alternatives for larger industrial users. The final selection should be based on actual FAD demand, pressure, site power, running hours and maintenance strategy.

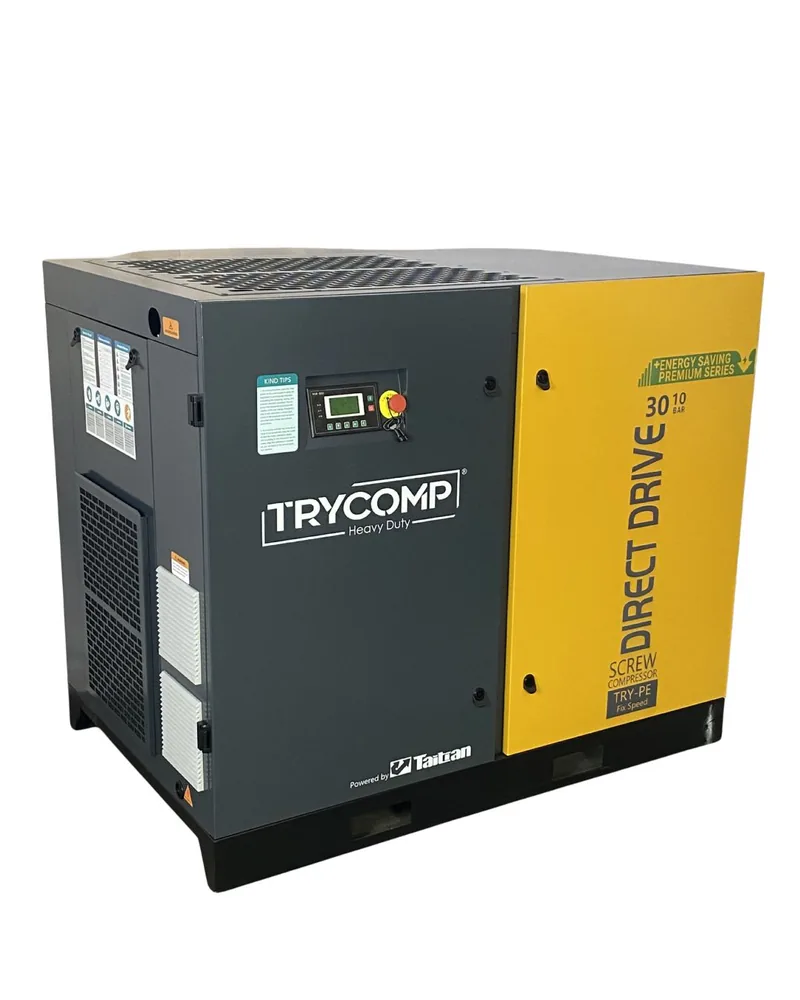

Product image used for visual representation. Final cabinet layout may vary by selected model, pressure, voltage and configuration.
Technical specifications
| Compressor Size | 37 kW |
|---|---|
| Recommended Range Family | Horizontal two-stage VSD or fixed-speed alternative |
| Model Reference | TRY37PE-TE-10 / TRY37PE-TAF-10 |
| Working Pressure Focus | 10 bar, with 7 bar / 8 bar / 13 bar options depending selected model |
| 10 bar Rated Flow / FAD | 6.1 m³/min |
| Technology | Two-stage screw air end; VSD / PM options and fixed-speed options available depending model |
| Control | Intelligent touch screen / PLC-type control with monitoring and protection functions |
| Cooling | Air cooled; fan configuration depends on model size |
| Application | Heavy industrial compressed-air supply, large workshops, production plants and mining support |
Two-stage data is brochure-based and must be confirmed with CRS at quotation stage. Final selection depends on pressure, site conditions, voltage, altitude, ambient temperature and required air quality.
Why two-stage?
- Designed for higher air demand and longer running hours.
- Improved efficiency compared with basic single-stage machines in the correct duty cycle.
- VSD options help match motor speed to air demand where demand changes.
- Fixed-speed options remain practical where demand is steady and continuous.
- CRS can support installation, service, dryers, filtration, pipework and SLA maintenance.
Where this 37 kW two-stage compressor works well
Manufacturing
Production lines, tools, actuators, pneumatic controls and plant air.
Mining & Quarrying
Support compressors for harsh industrial and mining-related environments.
Food & Beverage
Compressed air supply with suitable dryers, filtration and condensate control.
Large Service Contracts
Good fit for customers that need a long-term SLA, fast response and backup planning.
Important sizing note
Large screw compressors should never be selected on motor size alone. CRS should confirm actual air demand, pressure drop, air quality requirements and future growth before final machine selection.
Recommended support package
- Compressor supply and commissioning
- Service Level Agreement
- Dryer and filtration package
- Receiver and pipeline assessment
- Air leak detection and monitoring
- Rental backup where required
